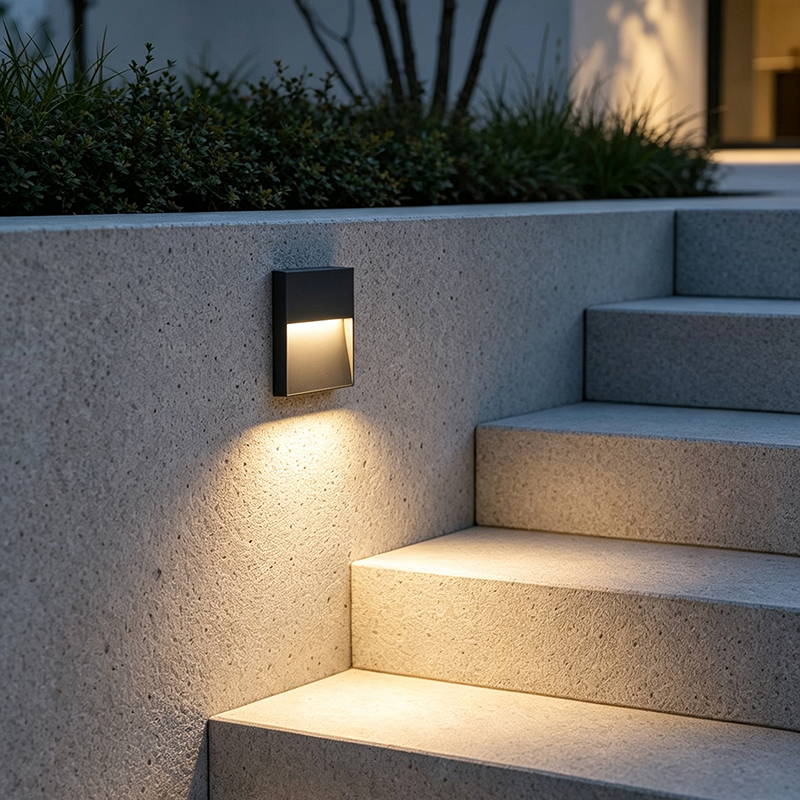

This die-cast aluminum step light is purpose-built for building corners, corridors, and wall edges, delivering a perfect balance of rugged durability and visual comfort in outdoor environments. Engineered for quick and hassle-free installation, it fits seamlessly into corner positions without complex operations—saving significant time and labor on site.
Built to endure harsh conditions, the fixture features an IP65 waterproof rating, IK08 impact resistance, and a UV-resistant coating that prevents fading and aging over time. Its robust die-cast aluminum body ensures long-term structural integrity, resisting deformation even under heavy use. The light produces a steady, uniform illumination that enhances visual comfort, eliminating glare while providing consistent brightness along walls and walkways.
Available in a versatile series with multiple size and shape options, this corner light adapts to diverse architectural requirements without compromising performance or aesthetics. Whether for residential complexes, commercial buildings, or public infrastructure, it offers reliable, low-maintenance lighting that stands up to rain, dust, and accidental impacts—making it an ideal choice for demanding outdoor applications.
| Place of Origin: | China |
| Brand Name: | Bestwon |
| Model Number: | BWL-10S |
| Certification: | CE, CB, RoHS, TUV |
| Minimum Order Quantity: | 200 |
| Price: | $11 |
| Packaging Details: | Brown box with cardboard set. |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
1. Corner Light / Corner Wall Light/Corner Mounted Light/Wall Corner Light Fitting/Architectural Wall Light.
2. This die-cast aluminum step light is purpose-built for building corners, corridors, and wall edges, delivering a perfect balance of rugged durability and visual comfort in outdoor environments.
3. x3 CCT adjustable, IP65, IK08, Square and round are available, 5 years warranty.
| CODE | BWL-10SS | BWL-10SL | ||
| Watt(W) | 4W | 12W | ||
| CCT(K) | 3000K-4000K-5000K Switchable | 3000K-4000K-5000K Switchable | ||
| Input Voltage | 220-240V | 220-240V | ||
| Light Source | SMD2835 | SMD2835 | ||
| Dimension(mm) | Ø120*31mm | Ø220*31mm | ||
| Beam Angle (°) | 203 | 204 | ||
| Luminous Flux (lm) ±5% | 233lm | 893lm | ||
| CRI | 80 | 80 | ||
| Housing Material | Die-Casting Aluminum | Die-Casting Aluminum | ||
| Standard colour(s) | Black/White/Grey | Black/White/Grey | ||
| Ingress Protection (IP) rating | IP65 | IP65 | ||
| Impact resistance (IK) | IK08 | IK08 | ||
| Ambient Temp.(°C) | -20~45℃ | -20~45℃ | ||
