| Place of Origin: | China |
| Brand Name: | Bestwon |
| Model Number: | BCL-01A/B/C |
| Certification: | CE, CB, RoHS, TUV |
| Minimum Order Quantity: | 200 |
| Price: | $42.09/$42.43/$43.41 |
| Packaging Details: | Brown box |
| Delivery Time: | 45 Days |
1. Different names for the product: Die-casting Downlight Surface Mounted Die-casting Aluminium Downlight, Outdoor Surface Mounted Downlight, Outdoor Die-casting Ceiling Light,Outdoor Surface Mounted Wall Light.
2. Main uses: Ideal for outdoor and sheltered applications such as wall-mounted lighting, ceiling installations, corridors, stairwells, and industrial areas. Its high ingress and impact resistance make it suitable for harsh weather conditions, while the flexible design supports use in commercial, residential, and public spaces where reliable, adjustable, and easy-to-maintain lighting is required.
3. Core specification parameters: BCL-01A: 14W-18W-22W-25W switchable, BCL-01B: 14W-18W-22W-25W switchable, BCL-01C: 14W-18W-22W-25W switchable. 3000K-4000K-5000K switchable. IP66, IK10, C3 powder coating passed 500hrs salt spray test, TUV certified, 5 years warranty.
The BCL-01 series is an IP66 & IK10 rated surface-mounted downlight designed for demanding outdoor and semi-outdoor environments. Constructed from durable die-cast aluminum, it offers robust protection against water and impact. Its standout innovation includes switchable wattage (14W-18W-22W-25W switchable) and adjustable color temperature (3000K-4000K-5000K switchable), providing versatile lighting control. The modular design allows for easy replacement of LED boards and drivers, supporting sustainability and reducing waste. Installation is simplified with a screwless surface ring secured by just one screw, ensuring a clean, aesthetic finish. Additional options such as microwave sensors, 3-hour emergency backup, and DALI/0–10V dimming enhance adaptability. Compatible with various mounting hole spacings, Besa boxes, and multiple wiring methods (bottom/side entry, loop-in/loop-out), this series offers three interchangeable cover styles for user customization.

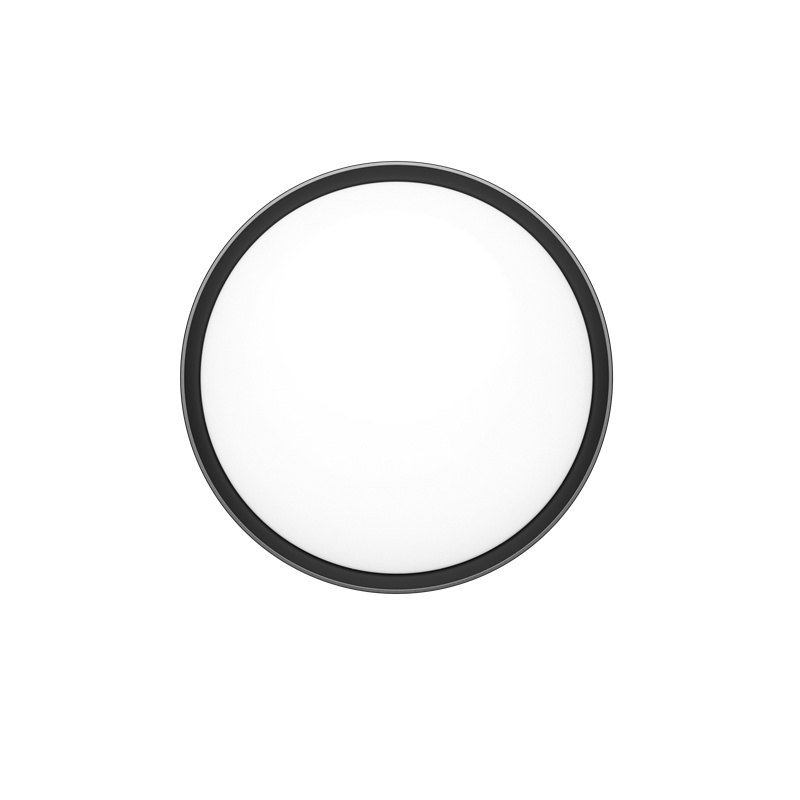

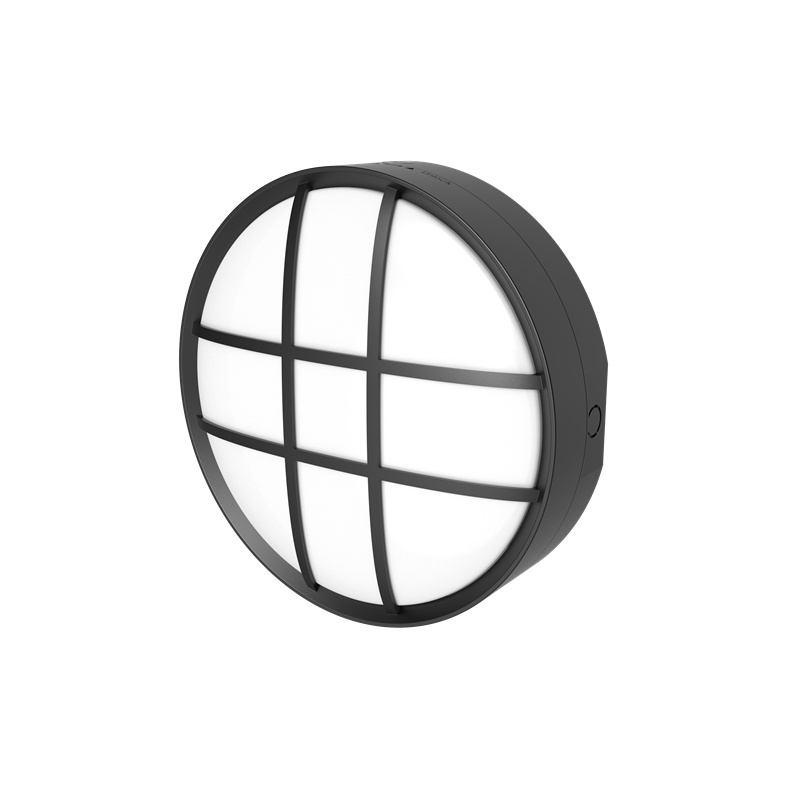

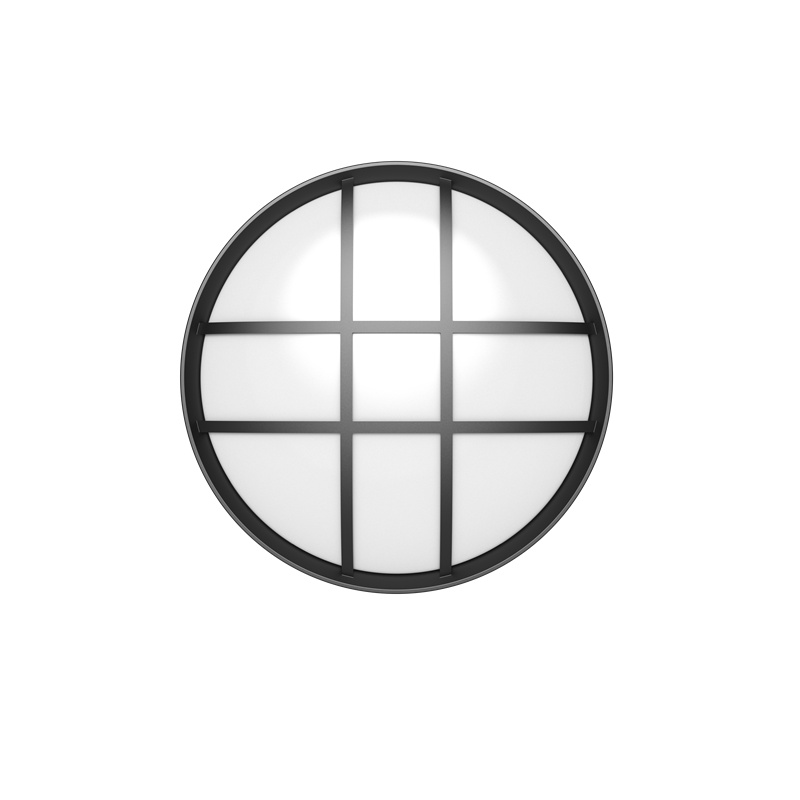

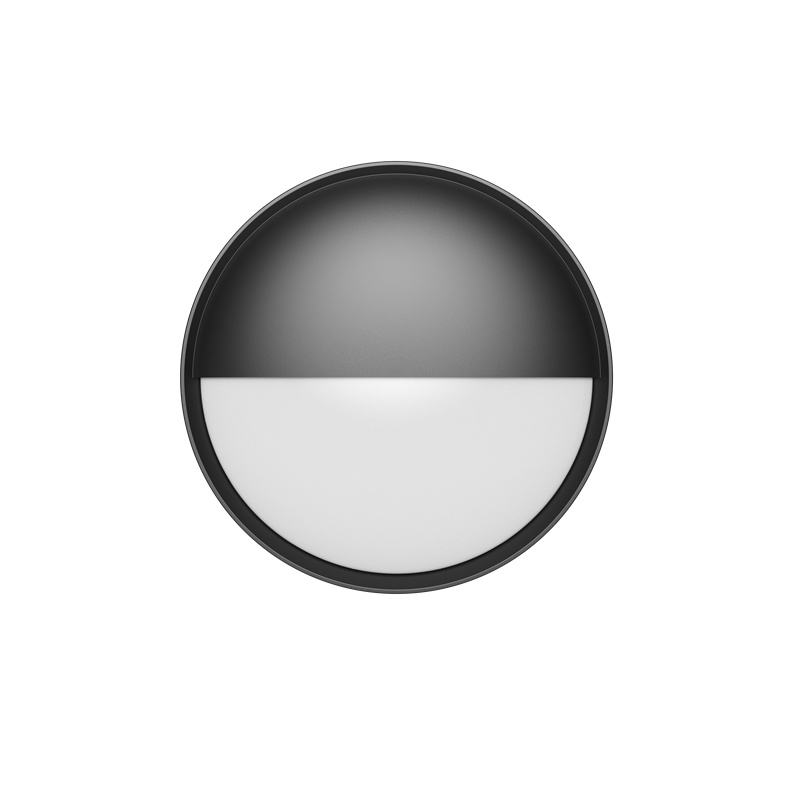

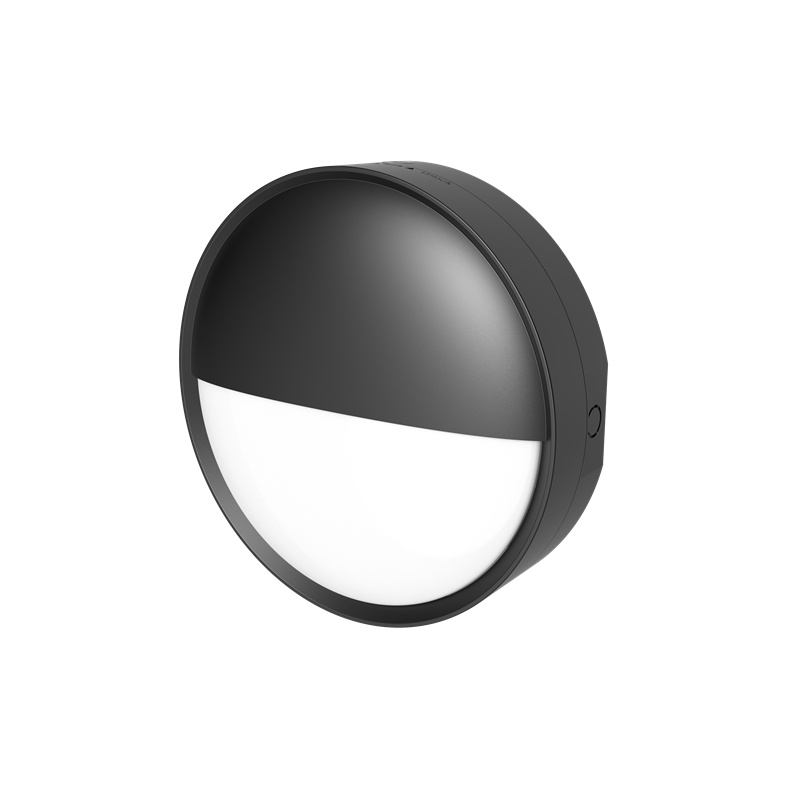

| CODE | BCL-01A | BCL-01B | BCL-01C | ||
| Watt(W) | 14W-18W-22W-25W Switchable | 14W-18W-22W-25W Switchable | 14W-18W-22W-25W Switchable | ||
| CCT(K) | 3000K-4000K-5000K Switchable | 3000K-4000K-5000K Switchable | 3000K-4000K-5000K Switchable | ||
| Input Voltage | 220-240V | 220-240V | 220-240V | ||
| Light Source | SMD2835 | SMD2835 | SMD2835 | ||
| Dimension(mm) | Ф300*87 | Ф300*90 | Ф300*90 | ||
| Beam Angle (°) | 110° | 110° | 110° | ||
| Luminous Flux (lm) ±5% | 2553lm | 2118lm | 1265lm | ||
| CRI | 80 | 80 | 80 | ||
| Housing Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | ||
| Standard colour(s) | Black/Grey | Black/Grey | Black/Grey | ||
| Ingress Protection (IP) rating | IP66 | IP66 | IP66 | ||
| Impact resistance (IK) | IK10 | IK10 | IK10 | ||
| Ambient Temp.(°C) | `-20~45℃ | `-20~45℃ | `-20~45℃ | ||
| Product weight(Kg) | 2.1KG | 2.85KG | 2.2KG | ||
Bestwon develops energy-efficient LED lighting with in-house R&D and manufacturing, serving outdoor, North American and European markets.
