EN
| Place of Origin: | China |
| Brand Name: | Bestwon |
| Model Number: | BWL-03SF/MF/LF |
| Certification: | CE, CB, RoHS, TUV |
| Minimum Order Quantity: | 200 |
| Price: | $34.86/$46.25/$51.62 |
| Packaging Details: | Brown box |
| Delivery Time: | 45 Days |
1. Different names for the product: Die casting Wall Light, Die casting Wall Lamp Outdoor Cylindrical Wall Light, Up&Down Wall Light, Up&Down Cylindrical Wall Light.
2. Main uses: Ideal for a wide range of outdoor architectural and landscape lighting applications. Its durable construction and adjustable features make it perfect for illuminating building facades, perimeter walls, entrance gates, garden pathways, and courtyards. Suitable for both residential projects and commercial settings such as hotels, restaurants, and public spaces, it provides safety, security, and aesthetic enhancement. The robust, weatherproof design ensures reliable performance in coastal or high-humidity environments.
3. Core specification parameters: BWL-03SF: 7W-10W-15W selectable, BWL-03MF: 15W-20W-25W selectable, BWL-03LF: 20W-30W-35W selectable. 3000K-4000K-5000K selectable. IP65, IK06, C3 powder coating passed 500hrs salt spray test, TUV certified, 5 years warranty.

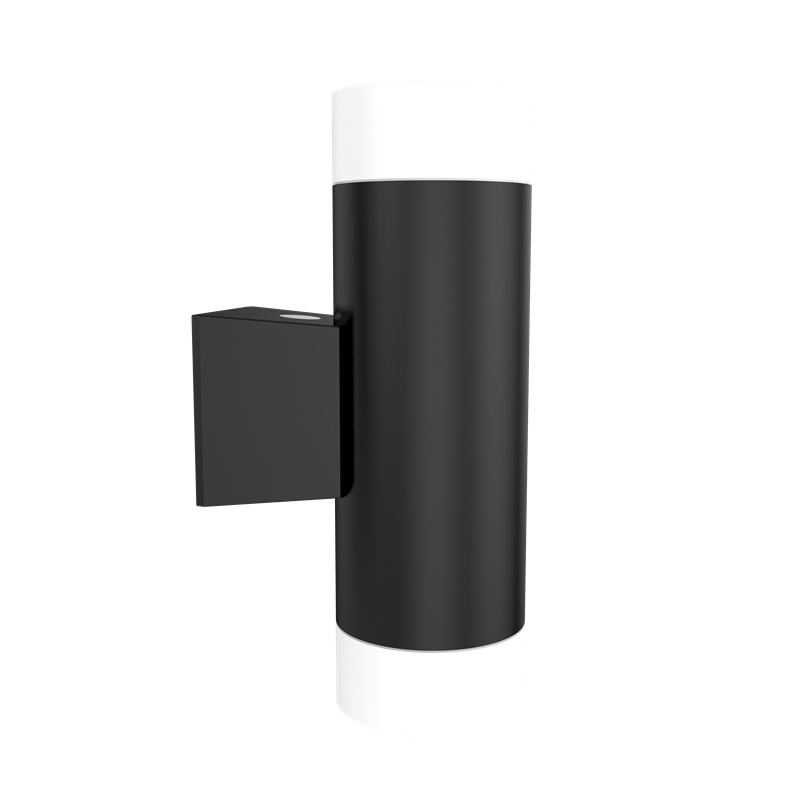

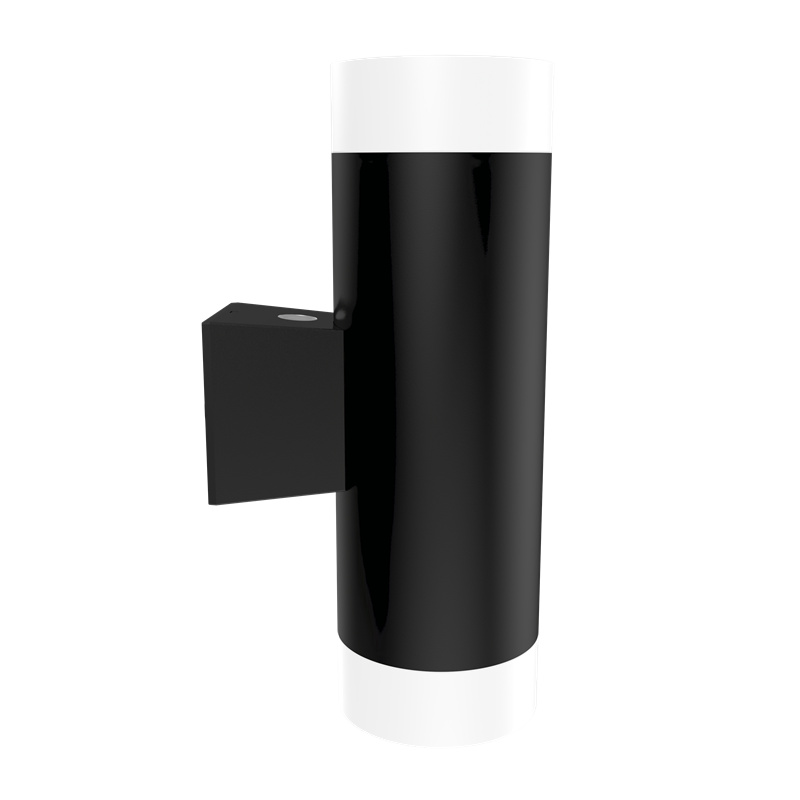

BWL-03SF/MF/LF Outdoor Cylindrical Wall Light
The BWL-03SF/MF/LF series is a versatile, high-performance outdoor wall light designed for durability and adaptability. It combines advanced tunable lighting with a robust, weatherproof construction, making it an ideal choice for enhancing and securing any exterior space.
Key Features:
Fully Adjustable Lighting: Tailor both wattage (selectable wattage per size) and CCT (3000K/4000K/5000K CCT). Control the light direction (Up/Down/Both) and beam angle (15°/25°/36°/55° (S50°)) for perfect application.
Rugged & Long-Lasting: Built for harsh environments with an IP65 weatherproof rating, IK06 impact resistance, and a corrosion-resistant C3 coating (500-hr salt spray test). Backed by a 5-year warranty and 2KV surge protection.
Easy & Flexible Installation: Features one-screw mounting, a clean screwless face, and dual terminal compatibility (AU/EU standards) for effortless setup and wiring.
Modular & Customizable: A unified design across three sizes (Ø68/92/106mm) allows for scalable projects. Interchangeable bezels enable different styles and effects, supporting DIY customization. Optional photocell adds convenience.

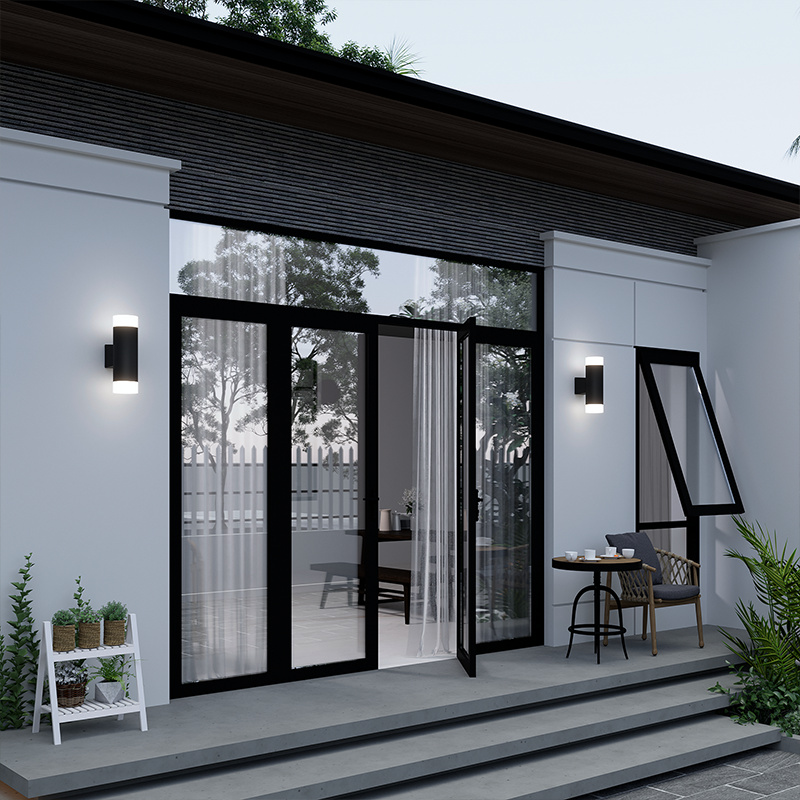

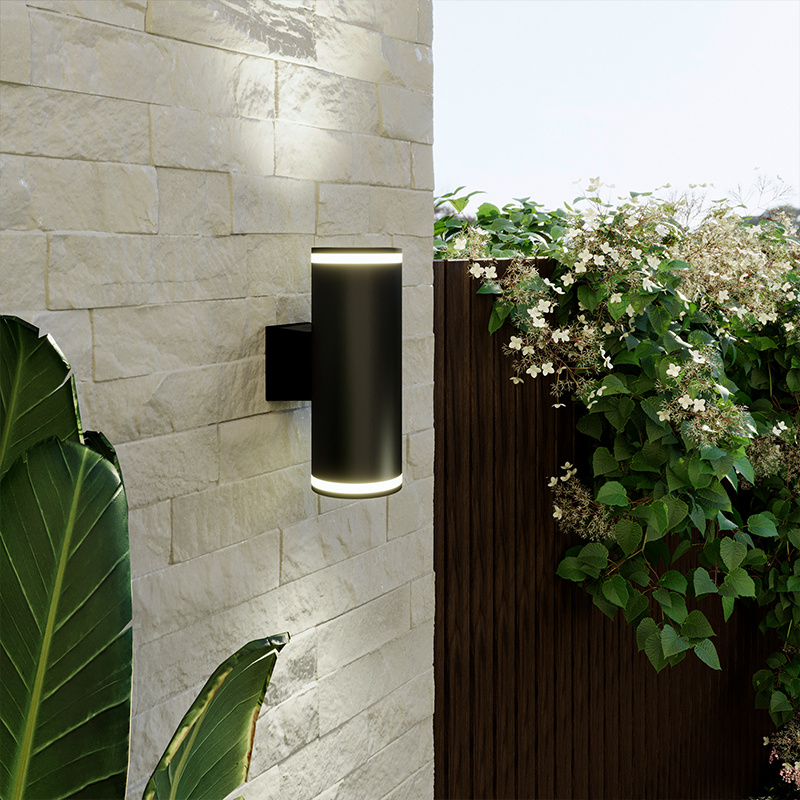

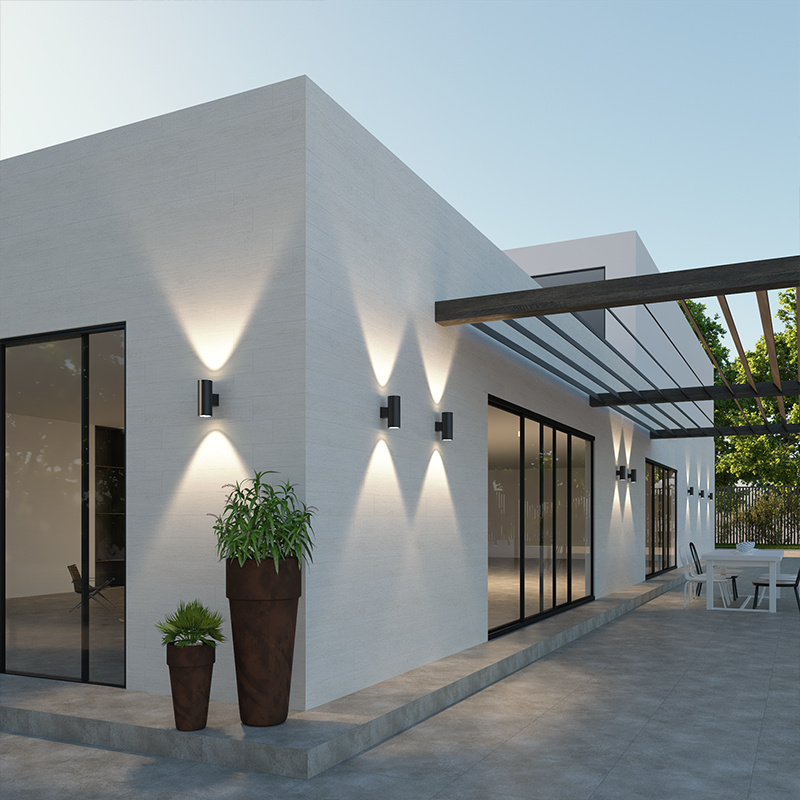

Suitable for illuminating facades, gardens, corridors, entrances, and perimeter walls, up&down cylinder.
Perfect for illuminating building facades, entrance gates, garden walls, pathways, and perimeter fencing. Its robust build and flexible lighting options make it suitable for residential, commercial, hospitality, and public outdoor areas requiring reliable, adaptive, and aesthetic wall lighting.
| CODE | BWL-03SF | BWL-03MF | BWL-03LF | ||
| Watt(W) | 7W-10W-15W Switchable | 15W-20W-25WSwitchable | 20W-30W-35WSwitchable | ||
| CCT(K) | 3000K-4000K-5000K Switchable | 3000K-4000K-5000K Switchable | 3000K-4000K-5000K Switchable | ||
| Input Voltage | 220-240V | 220-240V | 220-240V | ||
| Light Source | COB | COB | COB | ||
| Dimension(mm) | Ф68*249 | Ф92*289 | Ф106*326.5 | ||
| Beam Angle (°) | 15°/25°/36°/50° | 15°/25°/36°/55° | 15°/25°/36°/55° | ||
| Luminous Flux (lm) ±5% | 484-682-1034lm | 902-1210-1507lm | 1287-1848-2156lm | ||
| CRI | 80 | 80 | 80 | ||
| Housing Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | ||
| Standard colour(s) | Black/Grey | Black/Grey | Black/Grey | ||
| Ingress Protection (IP) rating | IP65 | IP65 | IP65 | ||
| Impact resistance (IK) | IK06 | IK06 | IK06 | ||
| Ambient Temp.(°C) | `-20~45℃ | `-20~45℃ | `-20~45℃ | ||
| Product weight(Kg) | 0.865KG | 1.195KG | 1.645KG | ||
Bestwon develops energy-efficient LED lighting with in-house R&D and manufacturing, serving outdoor, North American and European markets.
